Monacor SPH-165

Под заказ

Hi-fi bass-midrange speaker, 50 W, 8 Ом

Extra strong drive and high power capability
For general hi-fi applications of high requirements
Very well-suited for bass-reflex and band-pass cabinets up to horn speaker designs

Артикул:

Производитель: MONACOR

Категория: MONACOR HI-fi динамики

Фотография может отличаться от фактического товара

Характеристики

Под заказ

Бренд

SPH-165
Impedance (Z)	8 Ω

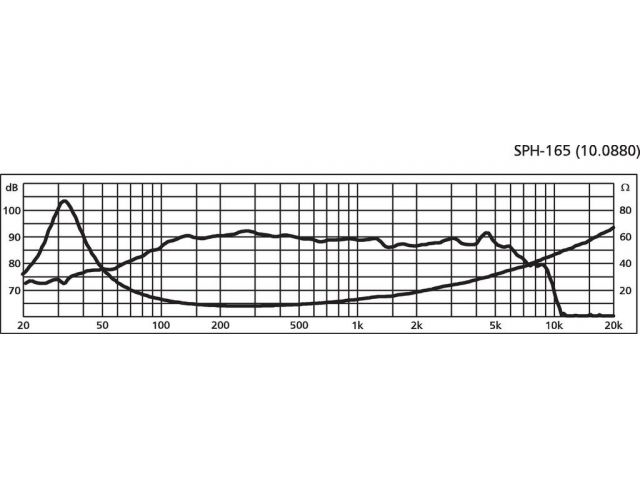

Frequency range	f3-5,000 Hz
Resonant frequency (fs)	33 Hz
Power rating (RMS)	50 W
Peak music power output (MAX)	100 W
Sensitivity	89 dB/W/m
Suspension compl. (Cms)	1.22 mm/N
Moving mass (Mms)	16 g
Mech. Q factor (Qms)	2.02
Electr. Q factor (Qes)	0.23
Total Q factor (Qts)	0.21
Equivalent volume (Vas)	36 l
DC resistance (Re)	6.5 Ω
Force factor (BxL)	9.70 Tm
Voice coil induct. (Le)	1.1 mH
Voice coil diameter	Ø 35.5 mm
Voice coil former	aluminium
Linear excursion (X_MAX)	± 3.5 mm
Eff. cone area (Sd)	137 cm²
Magnet weight	640 g
Magnet diameter	Ø 120 mm

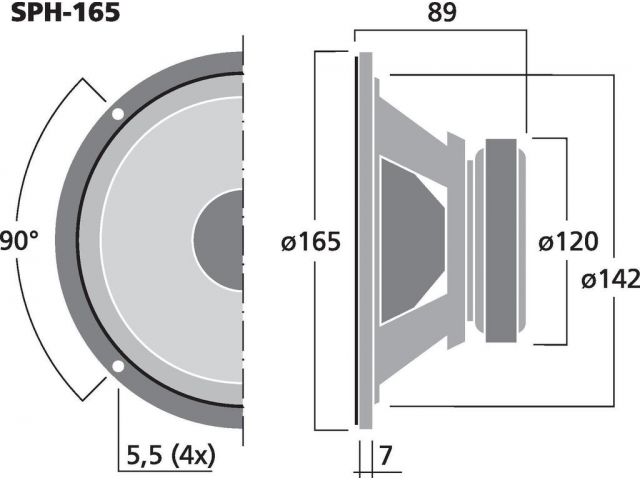

Mounting cutout	Ø 142 mm
Mounting depth	82 mm
Dimensions	Ø 165 x 89 mm
Outside diameter	Ø 165 mm
Width	Ø 165 mm
Depth	89 mm
Admiss. ambient temp.	0-40 °C
Weight	2.235 kg
Packing unit	1
Type of speaker	6.5"
