Monacor SPH-165CP

Под заказ
High-performance hi-fi bass-midrange speaker, 80 W, 8 Ом
  • Extra large voice coil (диам. 50 мм)
  • Parameters for a deep bass reproduction
  • Extra long excursion
  • Bass speaker for interesting dual arrangements in very slim 3-way high-power speaker systems and for 2-way bookshelf speakers of high power capability
HOBBY HiFi 04/2017
"Requires 13 to 18 litres only. However, still provides an incredibly deep bass reproduction down to almost 30 Гц."
Артикул:
Производитель: MONACOR
Категория: MONACOR HI-fi динамики
Фотография может отличаться от фактического товара
Под заказ
Бренд
MONACOR


SPH-165CP
Impedance (Z)8 Ω

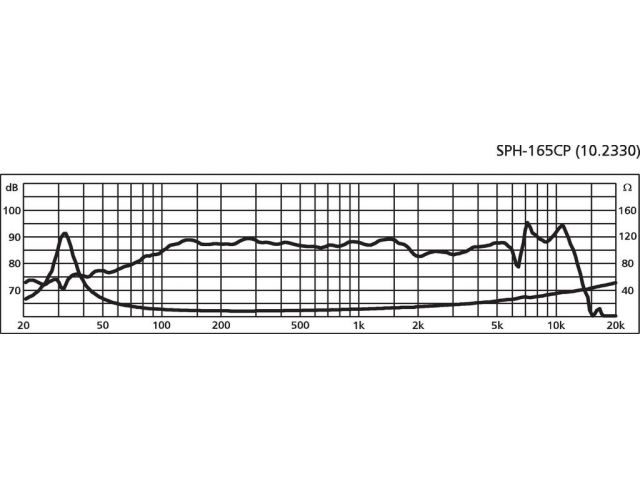

Frequency rangef3-6,000 Hz
Resonant frequency (fs)30 Hz
Power rating (RMS)80 W
Peak music power output (MAX)120 W
Sensitivity89 dB/W/m
Suspension compl. (Cms)1.71 mm/N
Moving mass (Mms)17 g
Mech. Q factor (Qms)4.85
Electr. Q factor (Qes)0.33
Total Q factor (Qts)0.31
Equivalent volume (Vas)38 l
DC resistance (Re)6 Ω
Force factor (BxL)7.60 Tm
Voice coil induct. (Le)0.7 mH
Voice coil diameterØ 50 mm
Voice coil formerglass fibre
Linear excursion (XMAX)± 4.75 mm
Eff. cone area (Sd)127 cm2
Magnet weight840 g + 50 g
Magnet diameterØ 120 mm

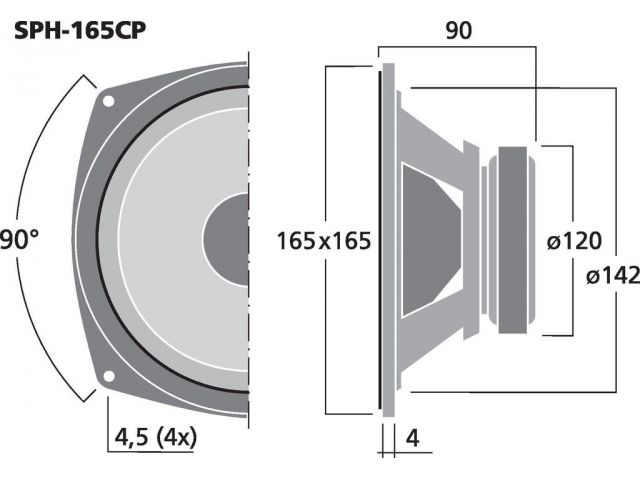

Mounting cutoutØ 142 mm
Mounting depth86 mm
Dimensions165 x 165 x 90 mm
Width165 mm
Height165 mm
Depth90 mm
Admiss. ambient temp.0-40 °C
Weight2.57 kg
Packing unit1
Type of speaker6.5"
